BTP  3.0
Routing/ClimbAnalysis/PowerCalculation
MainWindow Class Reference
Inheritance diagram for MainWindow:

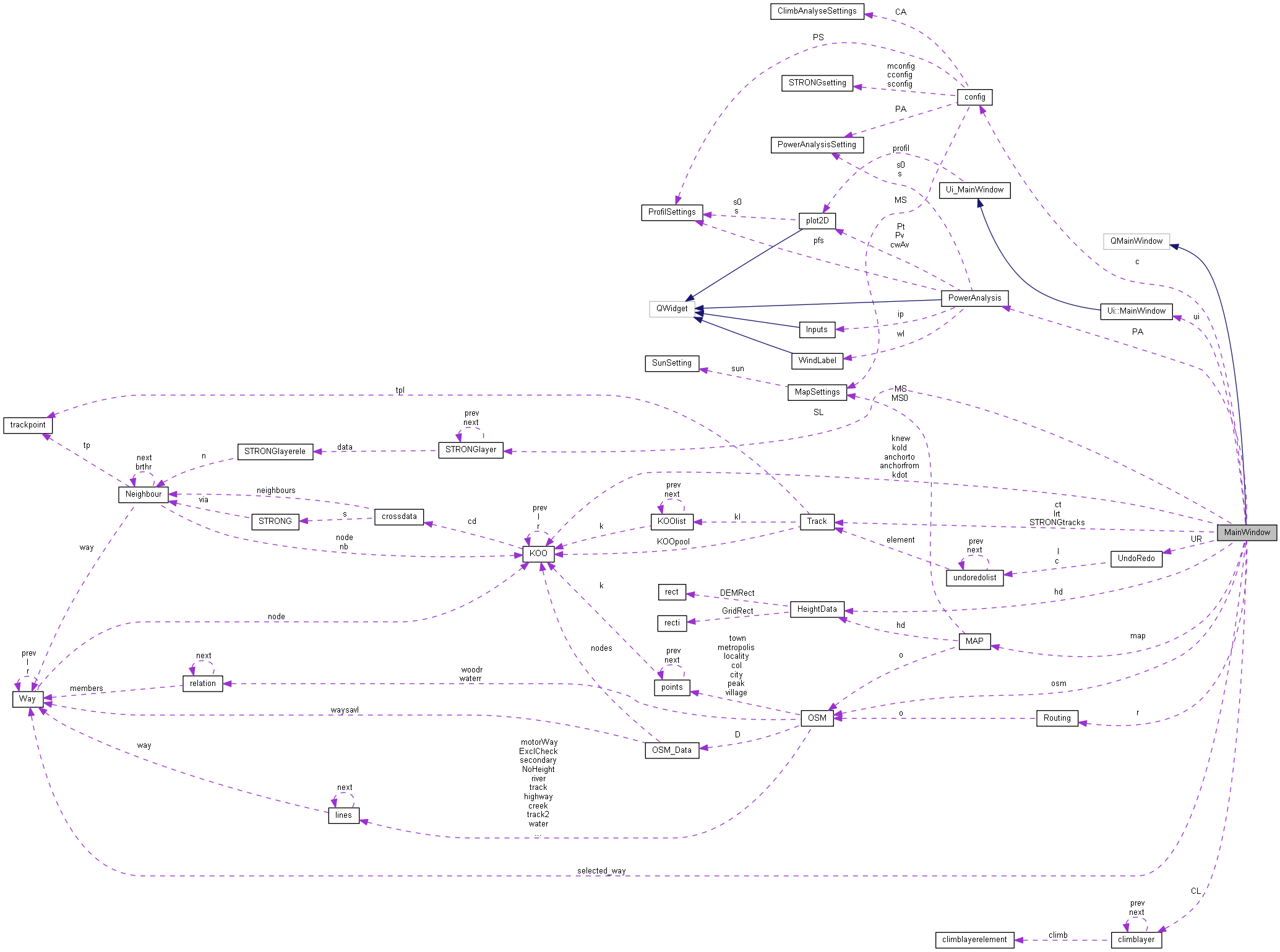

Collaboration diagram for MainWindow:

Signals

void stop_STRONG ()


Public Member Functions

 MainWindow (QWidget *parent=0)

void closeEvent (QCloseEvent *)

void load_btp (QString filename)

void save_btp (QString filename, double minlat, double maxlat, double minlon, double maxlon)

void read_osm (QString filename)

void analyse_gpx (QString filename)


Public Attributes

HeightDatahd

OSMosm

config c

int autosave


Private Slots

void set_SRTM3_folder ()

void set_start_btp ()

void load_btp ()

void save_btp ()

void read_osm ()

void analyse_gpx ()

void toggle_poweranalysis ()
 conroles communication from profil to mainwindow

void profilinfo (double x)

void profil_settings ()

void map_settings ()

void STRONG_preview (int i)

void STRONG_settings ()

void route_STRONG_finalize (int succes)

void save_profile ()

void save_gpx ()

void create_STRONGlayer ()

void save_STRONGlayer ()

void load_STRONGlayer ()

void toggle_STRONGlayer ()

void load_STRONGcalc ()

void save_STRONGcalc ()

void AnalyseClimbs ()

void load_Climblayer ()

void toggle_Climblayer ()

void generate_Map ()

void normalize_Hm ()

void invert_Hm ()

void update_profil ()

void center_track (double d)

void zoom_profil (double dmin, double dmax)
 repaints profil with current dataset, but refreshed titel

void toggle_showpower ()

void toggle_showspeed ()

void generate_tiles ()
 creates tiles for map server More...

void split_europe_pbf ()
 splits europe.pbf $osm data More...

void next_command ()
 slot to organize multithreating task More...

void add_Cmd (webdatacmd *w)
 slot to organize multithreating task More...

void correct_hgt ()
 slot to organize multithreating task More...

void read_europe ()
 slot to organize multithreating task More...

void CA_europe ()
 slot to organize multithreating task More...

void STRONG_europe ()
 slot to organize multithreating task More...

void zoom14_collection ()
 copy high zoom level tiles for desired areas in europe


Private Member Functions

void init ()
 loads settings, initialized variables

void init_config ()

void autoload_setting ()

void autosave_setting ()

void resizeEvent (QResizeEvent *event)
 change of main window size More...

void keyPressEvent (QKeyEvent *event)
 handles keyboard input

void mousePressEvent (QMouseEvent *event)
 handles all mouse inputs

void mouseReleaseEvent (QMouseEvent *event)

void mouseDoubleClickEvent (QMouseEvent *event)

void mouseMoveEvent (QMouseEvent *event)

void wheelEvent (QWheelEvent *event)

void MouseToTrack ()

void zoom (double zoomfactor, double dlonfactor, double dlatfactor)
 handles all map modification (mooving, zooming)

void update_statusbar ()

void set_routingmode (inputstate ip)
 sets routing mode and shows hints in statusbar

void set_mintype (char mt)

void set_maxtype (char mt)

void delete_to_cross (int cc)

void undo ()

void redo ()

void enter ()

void update_map_raw ()

void update_map_track ()

void update_map_MovObj (Way *w)

void drawRoute (QPainter *p)

void drawCross (QPainter *p)

void route_short ()

void route_flat ()

void route_STRONG ()

void acceptSTRONG ()

void selectSTRONG (readdirection rd, short steps)

void delete_STRONG_tracks ()

void toggle_preview ()

int route_preview (int x, int y)

void accept_ct ()

void reset_track ()

int trace_back (KOO *k)

void recalc_power ()

QColor colorgradient (float x)
 STRONGlayer.


Private Attributes

Ui::MainWindowui

MAPmap

Routingr

PowerAnalysisPA

QPixmap * cmap

int x

int y

int xold

int yold

KOOkold

KOOknew

KOOkdot

KOOanchorfrom

KOOanchorto

Trackct

Tracklrt

Track ** STRONGtracks

int sN

int STRONGindex

UndoRedoUR

dotstate dstate

int ydot

int xdot

inputstate oldroutemode

Wayselected_way

QString status1

QString status2

short readytotrace

int STRONGstate

short traceback

long int SLnbc

int SLN

int SLc

STRONGlayerSL

climblayerCL
 Climblayer.

QLabel * statusLeft

QLabel * statusMiddle

QList< webdatacmdCmdl
 command list to calculate web content multithreated

int threadscount


Detailed Description

Definition at line 179 of file mainwindow.h.

Member Function Documentation

void MainWindow::accept_ct ( )
private

releases ct and sets lrt

Definition at line 1237 of file mainwindow.cpp.

void MainWindow::acceptSTRONG ( )
private

accepts STRONG as new segment

Definition at line 917 of file mainwindow.cpp.

void MainWindow::add_Cmd ( webdatacmd w)
privateslot

slot to organize multithreating task

receives signals from working threads to expand tast list Cmdl

Definition at line 1684 of file mainwindow.cpp.

void MainWindow::CA_europe ( )
privateslot

slot to organize multithreating task

loads btp and executes ClimbAnalysem, than saves html data for website

Definition at line 1750 of file mainwindow.cpp.

void MainWindow::center_track ( double  d)
privateslot

connected to plot2d::clicked signal, centers map around trackpoint

Definition at line 1463 of file mainwindow.cpp.

void MainWindow::correct_hgt ( )
privateslot

slot to organize multithreating task

check all SRTM3 hgt-files of a folder for voids and interpolate lineary

Definition at line 1698 of file mainwindow.cpp.

void MainWindow::delete_to_cross ( int  cc)
private

deletes last cc crosses rom ct

Definition at line 1059 of file mainwindow.cpp.

void MainWindow::drawCross ( QPainter *  p)
private

update_map: draws selected cross

Definition at line 386 of file mainwindow.cpp.

void MainWindow::drawRoute ( QPainter *  p)
private

update_map: draws current tracks

Definition at line 398 of file mainwindow.cpp.

void MainWindow::enter ( )
private

handles all return events

Definition at line 1196 of file mainwindow.cpp.

void MainWindow::generate_Map ( )
privateslot

high end map after user dialog

Definition at line 1380 of file mainwindow.cpp.

void MainWindow::generate_tiles ( )
privateslot

creates tiles for map server

loads precalculated btp data and generates tiles from zoomlevel 5 to 14, output are png files, used by openlayers or google map API

Definition at line 1563 of file mainwindow.cpp.

void MainWindow::invert_Hm ( )
privateslot

for routing algorithms: fwd- and bwd-height meters are swapped, interesting for STRONG algorithm forced to finish at top of a mountain when the mountain is chosen as start point

Definition at line 1419 of file mainwindow.cpp.

void MainWindow::next_command ( )
privateslot

slot to organize multithreating task

receives finished signals from finished tasks restarts new threats if necesary. These leads to a maximum count of threats being active, i.g. optimized for example for eight active threads

Definition at line 1672 of file mainwindow.cpp.

void MainWindow::normalize_Hm ( )
privateslot

for routing algorithms: total height meters from to cross to cross are reduced by the height difference of the related two cross

Definition at line 1414 of file mainwindow.cpp.

void MainWindow::read_europe ( )
privateslot

slot to organize multithreating task

reads $*.osm files and saves btp

Definition at line 1718 of file mainwindow.cpp.

void MainWindow::recalc_power ( )
private

triggers PowerAnalyse to calc

Definition at line 1450 of file mainwindow.cpp.

void MainWindow::redo ( )
private

loads newest backup before undo

Definition at line 1103 of file mainwindow.cpp.

void MainWindow::reset_track ( )
private

resets track

Definition at line 939 of file mainwindow.cpp.

void MainWindow::resizeEvent ( QResizeEvent *  event)
private

change of main window size

generates new map and plots it in the size changed window

Definition at line 97 of file mainwindow.cpp.

void MainWindow::route_flat ( )
private

least Hm from kold to knew

Definition at line 823 of file mainwindow.cpp.

int MainWindow::route_preview ( int  x,
int  y
)
private

preview of open end routing

void MainWindow::route_short ( )
private

shortes path from kold to knew

Definition at line 801 of file mainwindow.cpp.

void MainWindow::route_STRONG ( )
private

most Hm from kold to knew

Definition at line 847 of file mainwindow.cpp.

void MainWindow::route_STRONG_finalize ( int  succes)
privateslot

finallizes succesful STRONG calc

Definition at line 862 of file mainwindow.cpp.

void MainWindow::selectSTRONG ( readdirection  rd,
short  steps
)
private

show the result of STRONG calc

Definition at line 1117 of file mainwindow.cpp.

void MainWindow::set_maxtype ( char  mt)
private

sets maximum road category

Definition at line 1078 of file mainwindow.cpp.

void MainWindow::set_mintype ( char  mt)
private

sets minimum road category

Definition at line 1074 of file mainwindow.cpp.

void MainWindow::split_europe_pbf ( )
privateslot

splits europe.pbf $osm data

takes europe data set of $OSM data in pbf file format and splits into either files representing zoomlevel 9 or higher depending on the maximum output file size of 400 MB

Definition at line 1687 of file mainwindow.cpp.

void MainWindow::STRONG_europe ( )
privateslot

slot to organize multithreating task

loads btp, calcs and saves STRONG and creates transparent tiles

Definition at line 1629 of file mainwindow.cpp.

void MainWindow::STRONG_preview ( int  i)
privateslot

refreshes STRONG calc

Definition at line 1262 of file mainwindow.cpp.

void MainWindow::STRONG_settings ( )
privateslot

settings user interface

Definition at line 1274 of file mainwindow.cpp.

void MainWindow::toggle_preview ( )
private

choose any endpoint at STRONG?

Definition at line 1253 of file mainwindow.cpp.

void MainWindow::toggle_showpower ( )
privateslot

speed is/not shown in plot

Definition at line 1486 of file mainwindow.cpp.

void MainWindow::toggle_showspeed ( )
privateslot

power is/not shown in plot

Definition at line 1494 of file mainwindow.cpp.

int MainWindow::trace_back ( KOO k)
private

if ready to trace tries to trace back beginning with k

Definition at line 725 of file mainwindow.cpp.

void MainWindow::undo ( )
private

loads news valid backup

Definition at line 1093 of file mainwindow.cpp.

void MainWindow::update_map_MovObj ( Way w)
private

draws short time objects

Definition at line 327 of file mainwindow.cpp.

void MainWindow::update_map_raw ( )
private

creates map fitting main window

Definition at line 296 of file mainwindow.cpp.

void MainWindow::update_map_track ( )
private

draws markers/tracks on raw map

Definition at line 313 of file mainwindow.cpp.

void MainWindow::update_profil ( )
privateslot

draws ct/pt/st to profil

Definition at line 351 of file mainwindow.cpp.

Member Data Documentation

KOO * MainWindow::anchorto
private

drag&drop between these anchors

Definition at line 339 of file mainwindow.h.

QPixmap* MainWindow::cmap
private

last generated map

Definition at line 335 of file mainwindow.h.

Track* MainWindow::ct
private

current Track

Definition at line 340 of file mainwindow.h.

dotstate MainWindow::dstate
private

state of the dot to be drawn

Definition at line 346 of file mainwindow.h.

KOO * MainWindow::kdot
private

old/new click cross postion

Definition at line 338 of file mainwindow.h.

short MainWindow::readytotrace
private

routing calculation is finished, any point can be backtraced

Definition at line 351 of file mainwindow.h.

Way* MainWindow::selected_way
private

way to be editted

Definition at line 349 of file mainwindow.h.

int MainWindow::sN
private

STRONG-tracks count

Definition at line 343 of file mainwindow.h.

QString MainWindow::status2
private

status bar contents

Definition at line 350 of file mainwindow.h.

QLabel* MainWindow::statusLeft
private

status bar splitting

Definition at line 366 of file mainwindow.h.

QLabel* MainWindow::statusMiddle
private

status bar splitting

Definition at line 367 of file mainwindow.h.

int MainWindow::STRONGindex
private

STRONG-tracks: current index

Definition at line 344 of file mainwindow.h.

int MainWindow::STRONGstate
private

0: two ele, 1: threat running, 2: multiple ele

Definition at line 353 of file mainwindow.h.

Track** MainWindow::STRONGtracks
private

STRONG-tracks

Definition at line 342 of file mainwindow.h.

int MainWindow::threadscount
private

number of active threads

Definition at line 370 of file mainwindow.h.

short MainWindow::traceback
private

try to trace back selected point

Definition at line 355 of file mainwindow.h.

UndoRedo* MainWindow::UR
private

Undo Redo list

Definition at line 345 of file mainwindow.h.

int MainWindow::xdot
private

buffer for dots to be drawn

Definition at line 347 of file mainwindow.h.

int MainWindow::y
private

current mouse postion

Definition at line 336 of file mainwindow.h.

int MainWindow::yold
private

old/new mouse postion

Definition at line 337 of file mainwindow.h.


The documentation for this class was generated from the following files:
