generating maps More...

#include <MAP.h>

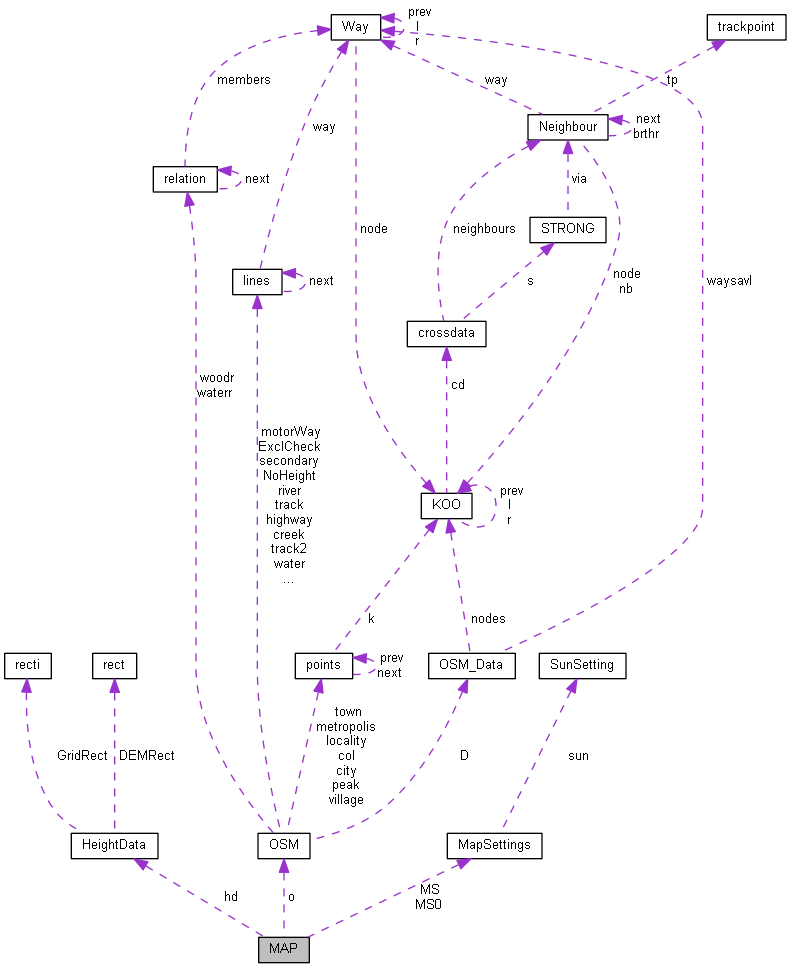

Collaboration diagram for MAP:

[legend]

Public Member Functions
	MAP (HeightData h, OSM o)
	create with SRTM3 class and OSM-data manager

void	settings (MapSettings *MS)
	assigns new settings

void	resize (int width, int height)
	adapts size, recalculate borders from desired borders

void	set_borders (double latmin0, double latmax0, double lonmin0, double lonmax0)
	sets desired borders, recalculate bordes due to window size

void	calc_borders ()
	desired borders to real borders More...

void	SRTM3toMAP (short getcmap)
	draws the relief

void	OSMtoMAP (short getcmap, short drawroads, short drawnature, short drawpoints)
	draws Open Street Map data

void	STRONGlayer_to_Map (QPainter p, STRONGlayer SL)
	draws STRONG calculation network

void	climblayer_to_map (climblayer *cl)
	draws climbs

void	add_BestClimb_Bar (QPainter p, climblayer cl)
	projects best climbs to the borders of the picture

void	draw_map (STRONGlayer SL, climblayer cl, Track *ct, int fastmode)
	universal high quality drawing More...

void	save_to_png (QString filename)
	save map as picture to hard disk

QPixmap *	get_Map ()
	return pixmap of the last generated map

void	draw_line (QPainter p, KOOlist k, int kc)
	drawing commends from outside

void	draw_line (QPainter p, KOO *k, int count)

void	draw_line (QPainter p, double *k, int count)

void	draw_line (QPainter p, Track ct)

int	Draw_lighted_text (QPainter p, KOO k, QString w, QColor lightcolor, QColor *textcolor)

double	getminlat ()
	return real borders

double	getminlon ()

double	getmaxlat ()

double	getmaxlon ()

int	getwidth ()

int	getheight ()

double	y_to_lat (int y)
	map coordinate information

double	x_to_lon (int x)

double	lat_to_y (double lat)

double	lon_to_x (double lon)

double	xy_to_height (int x, int y)

float	zoomsize (float size)

double	scale ()

float	get_mperlon ()

float	get_mperlat ()

Private Member Functions
void	add_DEM ()
	transform heighdata with sun settings into colors

void	add_contour ()
	adds contours to relief

void	htocolorfast (unsigned char *cd, float h, float dxf, float dyf)
	function to height to color operation

double	ytolat (int y)

double	xtolon (int x)

float	lattoy (double lat)

float	lontox (double lon)

QColor	colorgradient (float x)
	color functions

QColor	colorgradientSL (float x)

QColor	colorgradientSchading (float x)

void	change_intensity (int x, int y, double dI)

void	mult_color (unsigned char cd, QColor c)

void	linetomap (OSM o, QPainter p, lines **ll, QColor QColor, float linewidth, float minlinewidth)
	OSM drawing.

void	pointtomap (OSM o, QPainter p, points **pp, QColor QColor, float size)

void	peaktomap (OSM o, QPainter p, points **pp, float min, float max, QColor QColor, float size)

void	waternametomap (OSM o, QPainter p, lines **pp, QColor QColor, float size)

void	streetnametomap (OSM o, QPainter p, lines **pp, QColor QColor, float size)

void	rivernametomap (OSM o, QPainter p, lines **pp, QColor QColor, float size)

void	add_scale (QPainter *p)

void	Draw_lighted_text (QPainter p, QString w, QPointF P, QColor lightcolor, QColor textcolor)
	draws text with lighted background More...

void	Draw_lighted_Path (QPainter g, QPainterPath p, QBrush lightbrush, QBrush textbrush)

int	Draw_aligned_text (QPainter g, QPointF path, int pointcount, QString w, QPointF P, QBrush lightbrush, QBrush *textbrush)

void	reset_Template ()
	clears tamplate

void	linestoTemplate (lines *f, char val)
	edge flag algorithm to draw polyedges

void	facetoTemplate (lines **ff, char val)
	fills areas marked by edge flag algorithm

void	TemplatetoColorData ()

void	set (int x, int y, char val)
	edge flag algorithm marking the px(x,y), used by linestoTemplate

short	check_TemplateSpace (QRectF R)
	check R on the picture if free

void	set_TemplateSpace (QRectF R)
	marks R on the picture as occupied

short	check_TemplateSpace (QRectF R, char l)
	check R for l-value on the picture if free

void	set_TemplateSpace (QRectF R, char l)
	marks R as l-value on the picture as occupied

int	IntSec (QRectF R, char l)
	quantifies l-content in r-region

void	SRTM3ClimbtoMAP (climblayer *cl)
	climb layer method: SRTM3 DEM plus shading of climbs

void	climblayer_schading (climblayer *cl)
	climb layer method: shading called from SRTM3ClimbtoMAP()

void	ClimbTracks (QPainter p, climblayer cl)
	climb layer method: draw tracks

void	ClimbLabels (QPainter p, climblayer cl, int fastmode)
	climb layer method: draw labels

Private Attributes
int	width
	specified picture format

int	height

int	oldwidth

int	oldheight

double	minlat0
	desired area with ordinary coordinates More...

double	maxlat0

double	minlon0

double	maxlon0

double	minlat
	smaller area inside desired conform width picture scales More...

double	maxlat

double	minlon

double	maxlon

double	mmaxlat
	marcator projection scaled lattitude

double	mminlat

OSM *	o

HeightData *	hd

QPixmap *	cmap

MapSettings *	MS

MapSettings	MS0

QPointF	HP [28]
	help data to render picture

double **	hc

double **	dhdx

double **	dhdy

short **	h

unsigned char *	cd

short	lineos

short	wxxold

short	wyyold

int	lowcontour
	small contour step

int	highcontour
	big contour step

float	mperlat
	meter per SRTM3 cell vertical

float	mperlon
	meter per SRTM3 cell horizontal

float	pxperlat
	px per SRTM3 cell vertical

float	pxperlon
	px per SRTM3 cell horizontal

float	zoom
	meter per px

short	drawcontour

char **	t

Detailed Description

generating maps

generating maps using SRTM3 und btp (imported OSM data) data in mercator projection. The resulting image of the current map is stored in cmap. The drawing routine is located in draw_map() function.

Definition at line 24 of file MAP.h.

Member Function Documentation

void MAP::calc_borders ( )

desired borders to real borders

Desired borders may not represent the rectangle defined width an height. New borders will be set completely laying inside the old borders. If a to high area was specified, the lattitude range will be reduce, for a to wide area the longitude range will be shrinked. The method also sets tempory memory.

Definition at line 142 of file MAP.cpp.

void MAP::change_intensity	(	int	x,
		int	y,
		double	dI
	)

private

Parameters

y	changes grayvalue(x,y) by dI

Definition at line 342 of file MAP.cpp.

void MAP::Draw_lighted_text	(	QPainter *	p,
		QString *	w,
		QPointF	P,
		QColor *	lightcolor,
		QColor *	textcolor
	)

private

draws text with lighted background

draws text with lighted background; speedtest results for different background renderings: drawText() 28 times surround transparent: 1.4 ms drawPath() 28 times surrounded transparent: 71.6 ms, drawPath() 4 times surrounded transparent: 15.1 ms, drawPath() with 1 penwidthes: 10.6 ms drawPath() with 3 penwidthes: 25.2 ms

Definition at line 736 of file MAP.cpp.

void MAP::draw_map	(	STRONGlayer *	SL,
		climblayer *	cl,
		Track *	ct,
		int	fastmode
	)

universal high quality drawing

main mathod oh the MAP class, including OSM, SRTM3, STRONGlayer, CLimblayer. First renders relief from HeightData, then filling face data of OSM (wood, water) with edge flag algorithm. Then from least important to most important Map content is drawn onto map. If a climb layer is give the climb segments and labels are included in this process. If a STRONGlayer is give, the roads will be painted due to its STRONGindex

Definition at line 1410 of file MAP.cpp.

double MAP::scale ( )

km pro Pixel

Definition at line 1147 of file MAP.cpp.

double MAP::ytolat ( int y )

private

coordinate transformation between picture coordinates und geografic

coordinates

float MAP::zoomsize ( float size )

normalizes font size to zoom

Definition at line 764 of file MAP.cpp.

Member Data Documentation

unsigned char* MAP::cd

private

 color data, every px consists of

three bytes, used by all rendering

Definition at line 138 of file MAP.h.

double** MAP::dhdx

private

gradient in x direction

Definition at line 135 of file MAP.h.

double** MAP::dhdy

private

gradient in y direction

Definition at line 136 of file MAP.h.

short** MAP::h

private

SRTM3 grid, used by SRTM3toMap

Definition at line 137 of file MAP.h.

double** MAP::hc

private

height at px position

Definition at line 134 of file MAP.h.

short MAP::lineos

private

line offset to meet byte count

divisible by four for a picture line

Definition at line 140 of file MAP.h.

double MAP::maxlat

private

realized maximum lattitude

Definition at line 105 of file MAP.h.

double MAP::maxlat0

private

desired maximum lattitude

Definition at line 100 of file MAP.h.

double MAP::maxlon

private

realized minimum longitude

Definition at line 105 of file MAP.h.

double MAP::maxlon0

private

desired minimum longitude

Definition at line 100 of file MAP.h.

double MAP::minlat

private

smaller area inside desired conform width picture scales

realized minimum lattitude

Definition at line 105 of file MAP.h.

double MAP::minlat0

private

desired area with ordinary coordinates

desired minimum lattitude

Definition at line 100 of file MAP.h.

double MAP::minlon

private

realized minimum longitude

Definition at line 105 of file MAP.h.

double MAP::minlon0

private

desired minimum longitude

Definition at line 100 of file MAP.h.

char** MAP::t

private

templated marking occupied map area 0: unocuppied 1: wood only 10: water only 11: wood and water

Definition at line 192 of file MAP.h.

short MAP::wxxold

private

SRTM3 data cells in x direction

Definition at line 142 of file MAP.h.

short MAP::wyyold

private

SRTM3 data cells iny direction

Definition at line 143 of file MAP.h.

The documentation for this class was generated from the following files:

C:/Users/User/c++/BTP3/MAP.h
C:/Users/User/c++/BTP3/MAP.cpp
