BTP  3.0
Routing/ClimbAnalysis/PowerCalculation
STRONGcalc Class Reference

label algorithm to solve multicriteria shortes path problem More...

#include <strongcalc.h>

Inheritance diagram for STRONGcalc:

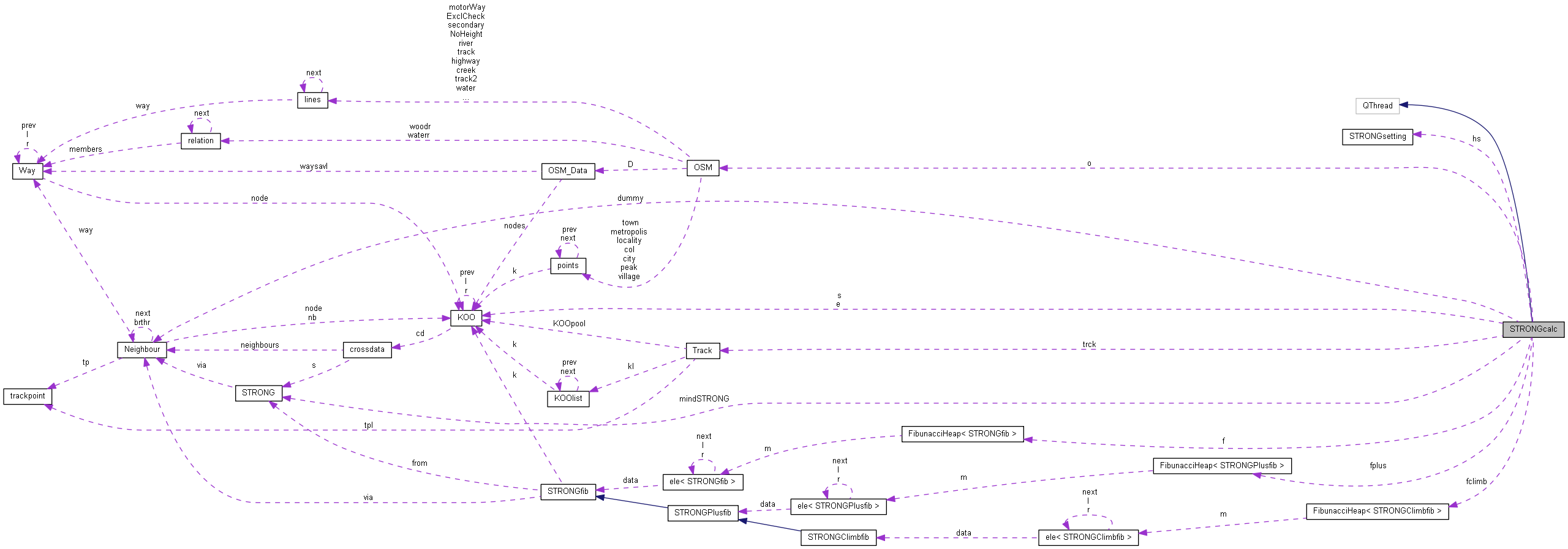

Collaboration diagram for STRONGcalc:

Public Slots

void stop_calculations ()
 sets STRONGcalc::calcstopped and stops algorithm in next iteration


Signals

void finished (int succesful)
 returns succes if a track was extracted from the STRONG network

void refresh_progress (int step)
 emitted if iteration step has finished


Public Member Functions

 STRONGcalc (OSM *o, KOO *s, KOO *e, char max, char min, STRONGsetting *hs, Track ***trck, int *N, bool Hmonly)
 STRONG calculation.

 STRONGcalc (OSM *o, int N, char *filename, Track ***results)
 save STRONG calculation

 STRONGcalc (OSM *o, int *N, char *filename, Track ***results)
 load STRONG calculation

void run ()

void exit ()


Private Member Functions

template<class T >
void calc (FibunacciHeap< T > **f)
 core function of the algorithm More...

void setSTRONG (KOO *k)

short traceback (STRONG *s, Neighbour *n)
 reconstructs track and checks if Neighbour n was already used More...

void STRONG_to_trck (int i)

void extract_neighbourlist (STRONG *s, STRONG *e, Neighbour ***nl, long int *nc)
 reconstructs link between start STRONG and end STRONG More...

int extract_STRONGPlus_restriciton (Neighbour *n)
 checks if STRONG can expand concerning restrictions

int extract_STRONGClimb_restriciton (Neighbour *n)
 checks if STRONG can expand concerning restrictions

void load_STRONG ()
 executes the loading of a STRONG network from file filename

void save_STRONG ()
 executes the save of a STRONG network to file filename

void load_crossdata (FILE *f)
 low level load routine of load_STRONG

void save_crossdata (KOO *k, FILE *f)
 low level save routine of save_STRONG

void init_Strong ()

void init_StrongPlus ()

void init_StrongClimb ()

void init_AreaStrong (KOO *k)

void init_AreaStrongPlus (KOO *k)

void init_AreaStrongClimb (KOO *k)

int index_STRONG (STRONGfib *t, Neighbour *n)

int index_STRONG (STRONGPlusfib *t, Neighbour *n)

int index_STRONG (STRONGClimbfib *t, Neighbour *n)

void store_STRONG (STRONGfib *t, Neighbour *n, int si, int i)

void store_STRONG (STRONGPlusfib *t, Neighbour *n, int si, int i)

void store_STRONG (STRONGClimbfib *t, Neighbour *n, int si, int i)


Private Attributes

int counter

RunMode runmode
 type of STRONGcalc to be executed

OSMo
 dataset to operate on

char filename [999]
 for save and load

KOOs
 start point

KOOe
 end point

char max

char min
 restrictions on Neighbour Way type

STRONGsettinghs
 major settings of the calculation

Track *** trck
 intermediate results of iterations

int N

int * Nout

int calcstopped

float radius
 data ellipse radius calculated from STRONGsetting and start/ end point

short foundSTRONG
 if 1 return succes when finished

Neighbourdummy

double * mind

STRONG ** mindSTRONG
 end point array of shortest track at specific strong index

FibunacciHeap< STRONGfib > ** f

FibunacciHeap< STRONGPlusfib > ** fplus

FibunacciHeap< STRONGClimbfib > ** fclimb

float hm

float hmup

float hmdown

float Psum

float dP


Detailed Description

label algorithm to solve multicriteria shortes path problem

This thread is designed to calculated the shortes route at given altitude difference. According to the original idea to ride the shortest route with 10000 Hm, the solution is call "$STRONG", and everything, which is related to this calculation will by named alike. The Label in that case is a STRONG struct, it shows where the track, which passes the owning cross, comes from, i.g. from which STRONG struct. Every STRONG struct represents an interval of Hm to make the mathematical problem solvable at all. Every crossdata bears an array of STRONG structs and intervals respectivly. The index of such an array, representing a Hm interval, is called strong index. In Principle the algorithm works like Dijkstra, with the important difference, that an ariving track will compare itself with tracks of similiar Hm having passed the cross before, i.g. tracks which passed the STRONG struct with the related striong index. In Dijkstra the distance only counts and tracks in only one STRONG struct are of importance. For further information refer to multicriteria shortes path problem and label algorithm.

Definition at line 28 of file strongcalc.h.

Member Function Documentation

template<class T >
void STRONGcalc::calc ( FibunacciHeap< T > **  f)
private

core function of the algorithm

takes a STRONG struct from the lowest Hm priority queue. This queue is a FibunacciHeap. The extracted STRONG is activ and has the shortes distance. It will be expanded by calc() and compare itself to existing aspirants in the related STRONG structs of the neighbouring crossdata. If it has shorter distance or finds a free STRONG struct it will be kept active and stored in the FibunacciHeap.
calc() runs until all FibunacciHeap are empty or calcstopped was set to one.

Definition at line 83 of file strongcalc.cpp.

void STRONGcalc::extract_neighbourlist ( STRONG s,
STRONG e,
Neighbour ***  nl,
long int *  nc
)
private

reconstructs link between start STRONG and end STRONG

generates a list of used Neighbour which can be uses to create a Track object

Definition at line 546 of file strongcalc.cpp.

int STRONGcalc::index_STRONG ( STRONGfib t,
Neighbour n
)
private

calculates related Hm intervall from Hm, ig.g strong index

Definition at line 398 of file strongcalc.cpp.

int STRONGcalc::index_STRONG ( STRONGPlusfib t,
Neighbour n
)
private

calculates related Hm intervall from Hm, ig.g strong index

Definition at line 401 of file strongcalc.cpp.

int STRONGcalc::index_STRONG ( STRONGClimbfib t,
Neighbour n
)
private

calculates related Hm intervall from Hm, ig.g strong index

Definition at line 412 of file strongcalc.cpp.

void STRONGcalc::init_AreaStrong ( KOO k)
private

prepares the class for the calc() function

Calcs maximum strong index, allocates STRONG arrays in all crossdata, which lie in the specified elliptical area. Allocates the FibunacciHeap array and fills it with zero indexed STRONG of all crossdata, which lie within the data area. This serves as a STRONGcalc with undefined start point.

Definition at line 284 of file strongcalc.cpp.

void STRONGcalc::init_AreaStrongClimb ( KOO k)
private

prepares the class for the calc() function

Calcs maximum strong index, allocates STRONG arrays in all crossdata, which lie in the specified elliptical area. Allocates the FibunacciHeap array and fills it with zero indexed STRONG of all crossdata, which lie within the data area. This serves as a STRONGcalc with undefined start point.

Definition at line 316 of file strongcalc.cpp.

void STRONGcalc::init_AreaStrongPlus ( KOO k)
private

prepares the class for the calc() function

Calcs maximum strong index, allocates STRONG arrays in all crossdata, which lie in the specified elliptical area. Allocates the FibunacciHeap array and fills it with zero indexed STRONG of all crossdata, which lie within the data area. This serves as a STRONGcalc with undefined start point.

Definition at line 299 of file strongcalc.cpp.

void STRONGcalc::init_Strong ( )
private

prepares the class for the calc() function

Calcs maximum strong index, allocates STRONG arrays in all crossdata, which lie in the specified elliptical area. Allocates the FibunacciHeap array and fills it with one Element, namely the startpoint.

Definition at line 161 of file strongcalc.cpp.

void STRONGcalc::init_StrongClimb ( )
private

prepares the class for the calc() function

Calcs maximum strong index, allocates STRONG arrays in all crossdata, which lie in the specified elliptical area. Allocates the FibunacciHeap array and fills it with one Element, namely the startpoint.

Definition at line 241 of file strongcalc.cpp.

void STRONGcalc::init_StrongPlus ( )
private

prepares the class for the calc() function

Calcs maximum strong index, allocates STRONG arrays in all crossdata, which lie in the specified elliptical area. Allocates the FibunacciHeap array and fills it with one Element, namely the startpoint.

Definition at line 200 of file strongcalc.cpp.

void STRONGcalc::setSTRONG ( KOO k)
private

allocates STRONG arrays

allocates STRONG arrays for all crossdata lying within the the specified data ellipse. This ellipse is defined by start and endpoint as focal point and the maximum distance from these points, stored in radius variable.

Definition at line 336 of file strongcalc.cpp.

void STRONGcalc::store_STRONG ( STRONGfib t,
Neighbour n,
int  si,
int  i
)
private

stores succesfully expanded STRONG in the FibunacciHeap

Definition at line 563 of file strongcalc.cpp.

void STRONGcalc::store_STRONG ( STRONGPlusfib t,
Neighbour n,
int  si,
int  i
)
private

stores succesfully expanded STRONG in the FibunacciHeap

Definition at line 573 of file strongcalc.cpp.

void STRONGcalc::store_STRONG ( STRONGClimbfib t,
Neighbour n,
int  si,
int  i
)
private

stores succesfully expanded STRONG in the FibunacciHeap

Definition at line 584 of file strongcalc.cpp.

void STRONGcalc::STRONG_to_trck ( int  i)
private

reconstructs strong track with strong index i

This is tracing back from end point or if no end point was stated then the point which was reached with least distance.

Definition at line 356 of file strongcalc.cpp.

short STRONGcalc::traceback ( STRONG s,
Neighbour n
)
private

reconstructs track and checks if Neighbour n was already used

If the Neighbour was found, zero is returned, else one

Definition at line 385 of file strongcalc.cpp.

Member Data Documentation

float STRONGcalc::dP
private

data of the currently traded STRONG struct

Definition at line 153 of file strongcalc.h.

Neighbour* STRONGcalc::dummy
private

bumbper to mark root if STRONG net

Definition at line 141 of file strongcalc.h.

FibunacciHeap<STRONGfib>** STRONGcalc::f
private

priority queue of the calc() routine

Definition at line 144 of file strongcalc.h.

FibunacciHeap<STRONGClimbfib>** STRONGcalc::fclimb
private

priority queue of the calc() routine

Definition at line 146 of file strongcalc.h.

FibunacciHeap<STRONGPlusfib>** STRONGcalc::fplus
private

priority queue of the calc() routine

Definition at line 145 of file strongcalc.h.

float STRONGcalc::hm
private

data of the currently traded STRONG struct

Definition at line 153 of file strongcalc.h.

float STRONGcalc::hmdown
private

data of the currently traded STRONG struct

Definition at line 153 of file strongcalc.h.

float STRONGcalc::hmup
private

data of the currently traded STRONG struct

Definition at line 153 of file strongcalc.h.

double* STRONGcalc::mind
private

minimum distance for strong index

Definition at line 148 of file strongcalc.h.

float STRONGcalc::Psum
private

data of the currently traded STRONG struct

Definition at line 153 of file strongcalc.h.


The documentation for this class was generated from the following files:
